Multifunctional Electrical Installations Meter – Overview

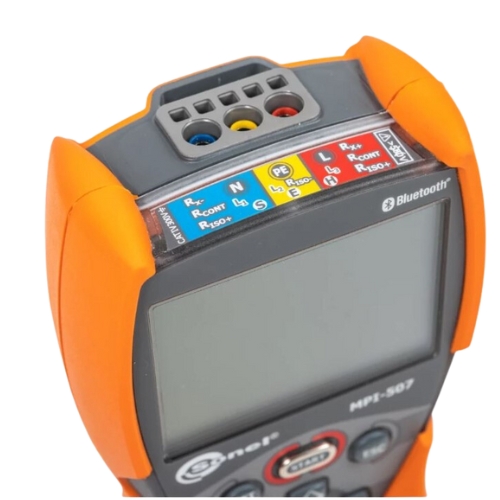

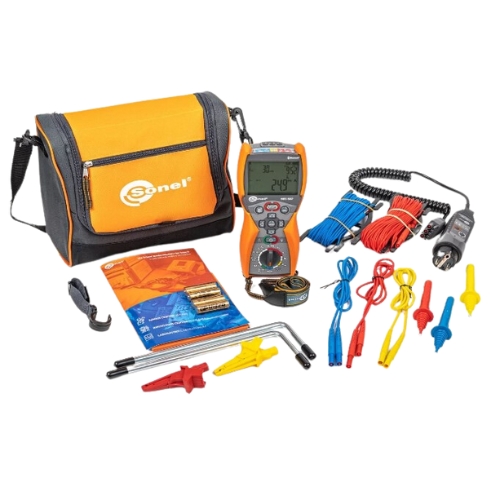

The MPI-507 is used for precise measurements of electrical installation parameters. Its sleek, compact and ergonomic design holds a wealth of measurement functions.  Although it is one of the smallest multifunction meters on the market, it surprises one with its versatility, intuitive operation, and extended capabilities.  It has been designed for specialists in the installation and electrical industries, as well as for professional measuring engineers. Its main advantage is the quick measurement of fault loop impedance in circuits with RCD. It measures short-circuit loop parameters, insulation resistance, the resistance of protective and equalising connections, earth resistance, as well as the testing of residual current devices (RCD) of type AC and A. The functions are selected with a rotary switch. Additional parameters are set with buttons located on the housing interface. It is easy to use and priced very competitively.  The device settings are saved automatically even when the battery is completely discharged. The backlit display and buttons make it suitable for use in low light. The large memory eliminates the need for taking notes during the measurements. It is suitable for inspecting the safety of electrical systems in households and industrial facilities. Its housing is robust and weather-resistant with an IP67 rating. Bluetooth wireless communication allows easy transfer of data. Use Sonel Reports PLUS software to generate a report on measurements for electric shock protection. Saving the downloaded data to the simplest formats and printing is provided by free Sonel Reader software.

Multifunctional Electrical Installations Meter – Features

  • Measurement of short circuit loop parameters
  • Testing RCD breakers of AC, A types
  • Earth resistance measurement
  • Insulation resistance measurement
  • Measurement of resistance of protective conductors and bondings
  • Phase sequence indication



Available on back-order

SKU: WMGBMPI507 Category: Tag:
Sonel Logo Square

Description

Multifunctional Electrical Installations Meter | MPI-507

Specifications
Measurement functions Measurement range Display range Resolution Accuracy
Fault loop impedance
Fault loop ZL-PE, ZL-N, ZL-L 0.13 Ω…1999 Ω acc.
to IEC 61557		 0.00 Ω…1999 Ω from 0.01 Ω ±(5% m.v. + 3 digits)
Fault loop ZL-PE in RCD mode from 0.5 Ω…1999 Ω acc.
to IEC 61557		 0.00 Ω…1999 Ω from 0.01 Ω from ±(6% m.v. + 5 digits)
Measurements of RCD parameters
RCD tripping test and measurement
of tripping timetA measuring current
0,5 IΔn, 1 IΔn, 2 IΔn, 5 IΔn
general and short-time delay RCD  0 ms…300 ms 0 ms…300 ms 1 ms ±(2% m.v. + 2 digits)
selective RCD 0 ms…500 ms 0 ms…500 ms 1 ms ±(2% m.v. + 2 digits)
Measurement of RCD tripping current IA
measuring current 0,3 IΔn…2,0 IΔn
for sinusoidal residual current (AC type) 3.0 mA…500 mA 3.0 mA…500 mA from 0.1 mA ±5%  IΔn
for unidirectional residual current and
unidirectional with the 6 mA DC bias (type A)		 3.5 mA…420 mA 3.5 mA…420 mA from 0.1 mA ±10%  IΔn
Earth resistance
3-pole method 0.68 Ω…1999 Ω acc.
to IEC 61557-5		 0.00 Ω…1999 Ω from 0.01 Ω from ±(3% m.v. + 5 digits)
Insulation resistance
Measuring voltage 100 V 100 kΩ…99.9 MΩ acc.
to IEC 61557-2		 0 kΩ…99.9 MΩ from 1 kΩ ±(5% m.v. + 8 digits)
Measuring voltage 250 V 250 kΩ…199.9 MΩ acc.
to IEC 61557-2		 0 kΩ…199.9 MΩ from 1 kΩ ±(5% m.v. + 8 digits)
Measuring voltage 500 V 500 kΩ…599.9 MΩ acc.
to IEC 61557-2		 0 kΩ…599.9 MΩ from 1 kΩ ±(5% m.v. + 8 digits)
Resistance of protective
conductors and equipotential bondings
Measurement of resistance of protective
conductors and equipotential bondings
with ±200 mA current		 0.12 Ω…400 Ω acc.
to IEC 61557-4		 0.00 Ω…400 Ω from 0.01 Ω ±(2% m.v. + 3 digits)
Measurement of resistance with low current 0.0 Ω…1999 Ω 0.0 Ω…1999 Ω from 0.1 Ω ±(2% m.v. + 3 digits)
Phase sequence indication in the same direction
(correct),opposite
direction (incorrect),
UL-L voltage: 100 V…440 V
(45 Hz…65 Hz)
“m.v.” – measured value

Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.
