R9,456.00 ex vat
This wind speed sensor is very economical. These sensors impress with simple mounting methods, high accuracy, robustness and seawater-proof materials. The Modbus RTU interface simplifies sensor installation and integration into networks.
Available on back-order

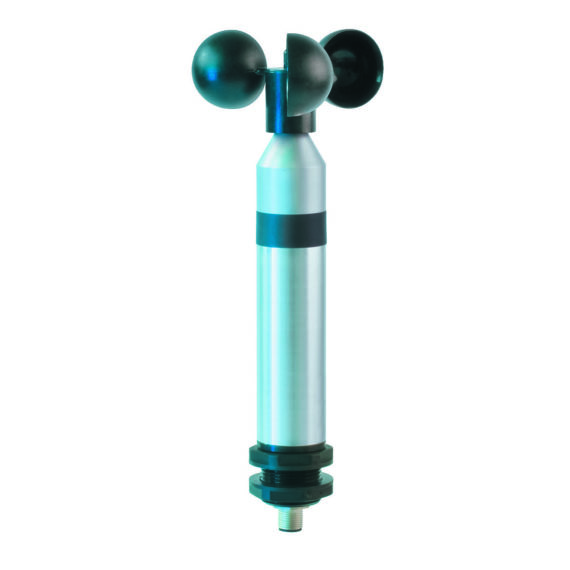

Wind Speed Sensor | INDUSTRY Modbus
| Id-No. | 00.14577.110030 |
| Measuring range | 0.7…50 m/s |
| Accuracy | 0.5 m/s at 0.7…5 m/s and 2 % FS at 5.02…50 m/s |
| Resolution | < 0.02 m/s |
| Starting value | < 0.7 m/s |
| Output | Modbus RTU · RS 485 |
| Range of application | temperatures -30…+70 °C heated • wind speed 0…60 m/s |
| Supply voltage | 24 (20…28) VDC • max. 800 mA |
| Measuring elements | plastic • 3 armed cup rotor – fail safe |
| Measuring principle | Hall Sensor Array |
| Dimensions | cup rotor Ø 95 mm – H 230 mm |
| Housing | aluminium • anodised • IP 55 • Ø 32 mm • bore Ø 30 mm for mounting at traverse |
| Weight | approx. 0.25 kg |
| Included in delivery | 4-pole M12 plug connector |
| Accessories (order separately) | 32.14567.060010 sensor cable, 15 m, 4 pole, M12 plug
32.14567.060000 sensor cable, 12 m, 4 pole, M12 plug |
