Humidity Generator – Overview

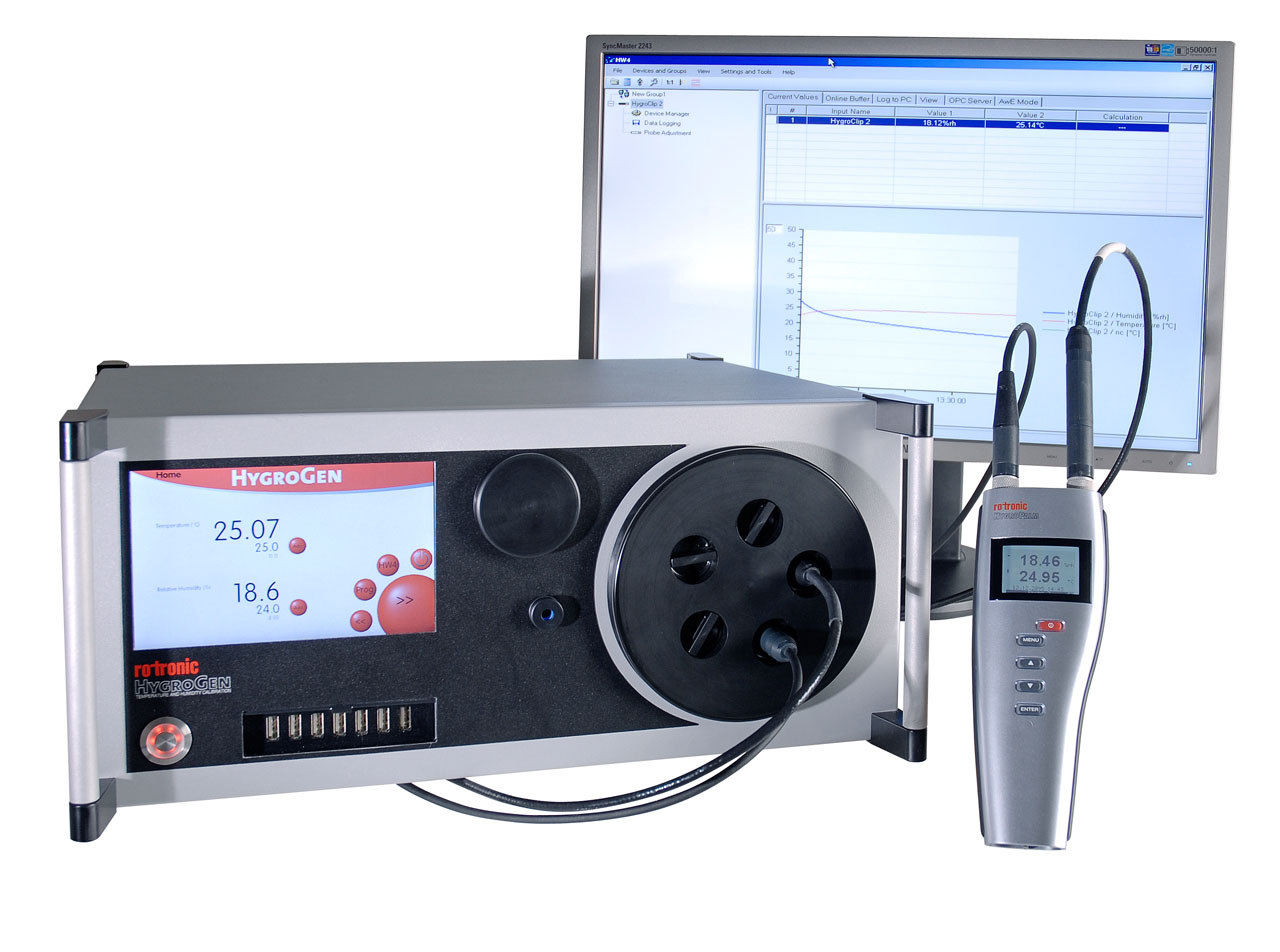

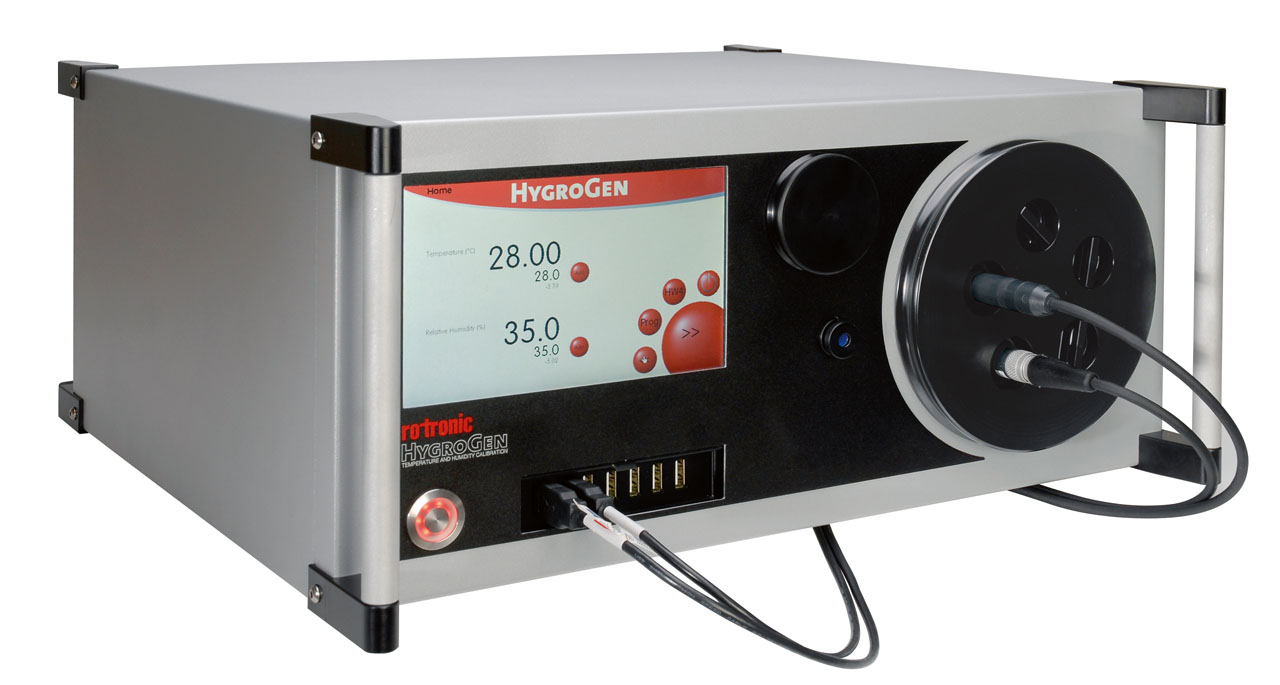

Portable humidity and temperature generator to calibrate humidity and temperature measuring instruments (multi-point calibration). The HygroGen2 works like a “mobile calibration laboratory” and is intended for companies that regularly need to calibrate a large number of probes. The calibrator allows simple, flexible calibration with the advantage that the calibrated units can be integrated into the operative processes again quickly. The HygroGen offers numerous outstanding benefits, particularly to the pharmaceutical industry.

Humidity Generator – Features

• Generates a stable reference environment
• Range of application: 0…60 °C, accuracy: ±0.05 K
• Reaches equilibrium humidity in typically 5 minutes
• Suitable for all humidity and temperature probes
• Calibrates up to 5 probes simultaneously
• Easy-to-use touchscreen monitor

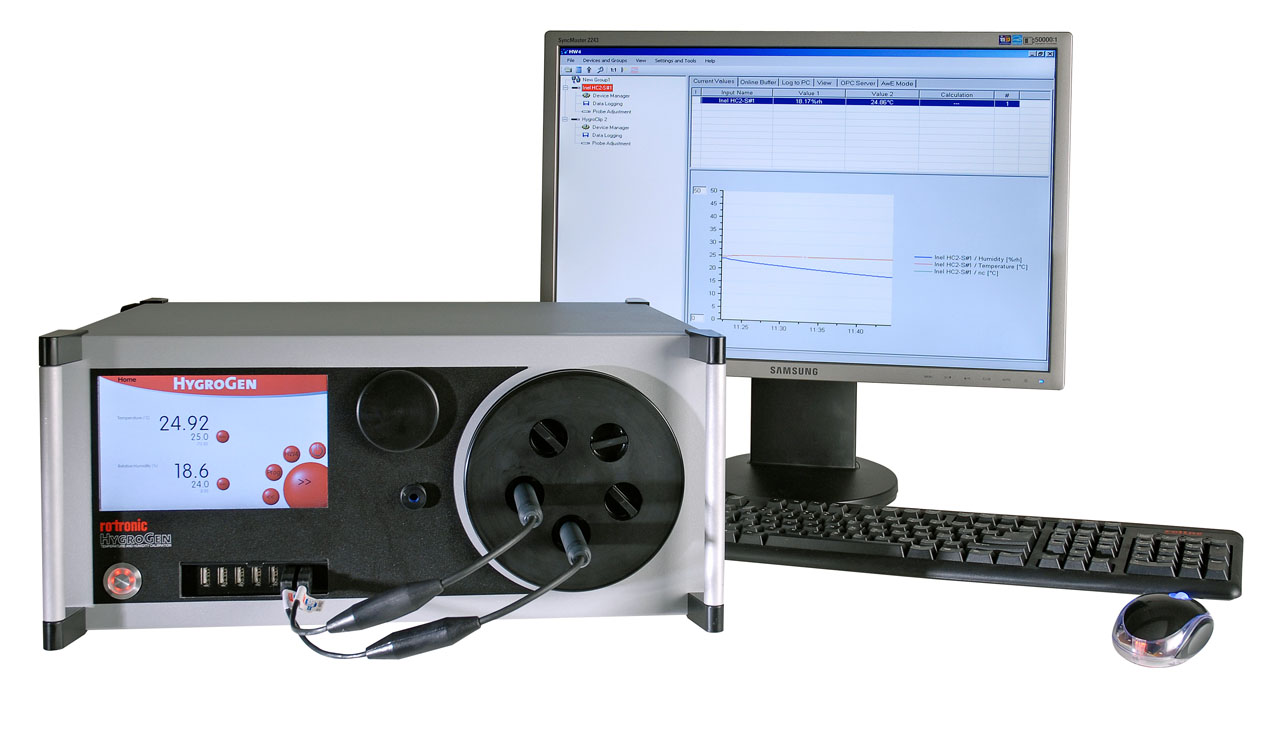

• DVI interface for external monitor
• USB interface for connection of keyboard, mouse and ROTRONIC USB probes
• The integrated HW4 software ensures easy calibration and adjustment of all probes
• External heated connections for a dew point mirror reference are standard. This allows the user to adjust the reference probes with extremely high precision or to reduce the total calibration uncertainty
• The water quality is kept at a high level by a UV steriliser, meaning algae and bacteria cannot form

Optional FEATURES

• AutoCal – Automated calibration of up to 6 HC2 probes connected via AC3001 USB adaptor:
  • Option to automatically adjust 1 temperature and 10 humidity points
  • Creates PDF calibration certificate for each probe under test
  • 20 user programs (up to 200 set points per program)
• Range Extension
  • Temperature range extension -5…60 °C (Standard 0…60 °C)
  • Humidity range extension 2…99 %RH (Standard 5…95 %RH)

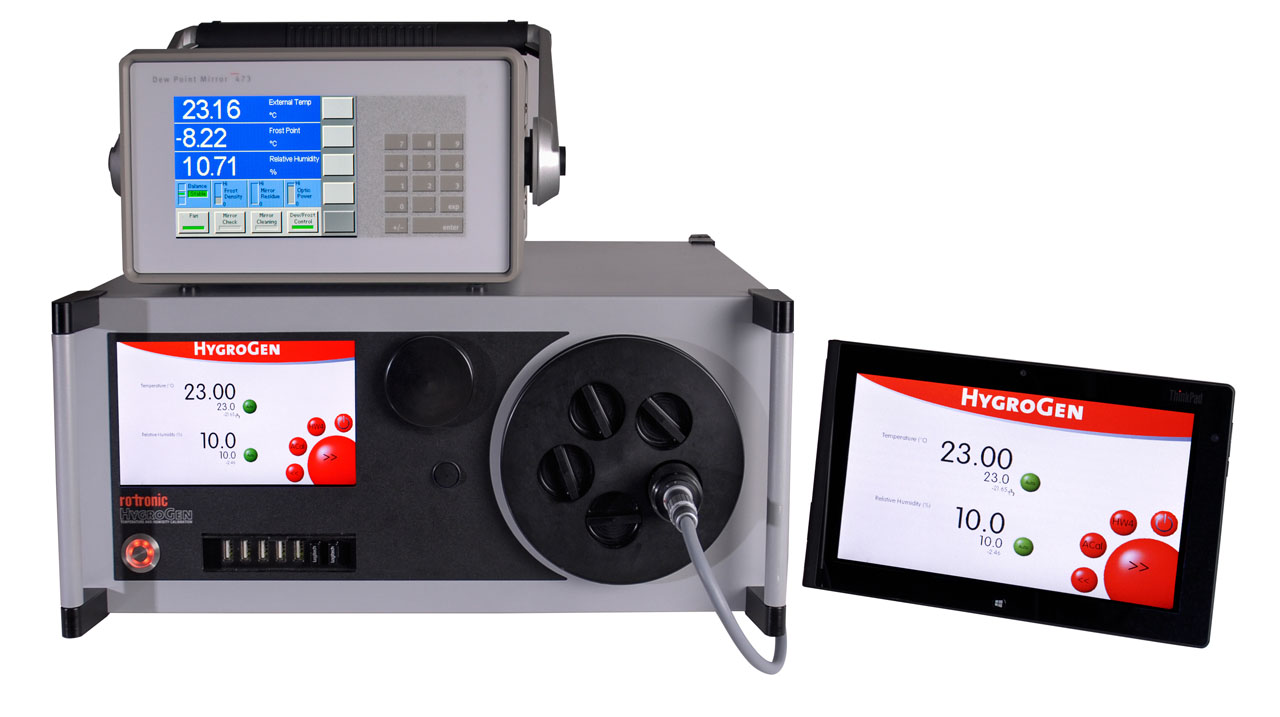

• NEW: AutoCal+ / Dew Point Mirror MBW 473
  • New HygroGen2 software version 2.1 further extends the utility of the instrument, with the ability to use MBW chilled mirror hygrometers as the AutoCal calibration reference
• NEW: Remote Control
  • Remote Control allows a larger screen interface to be used via another device allowing access from Windows, Mac, iOS and Android
