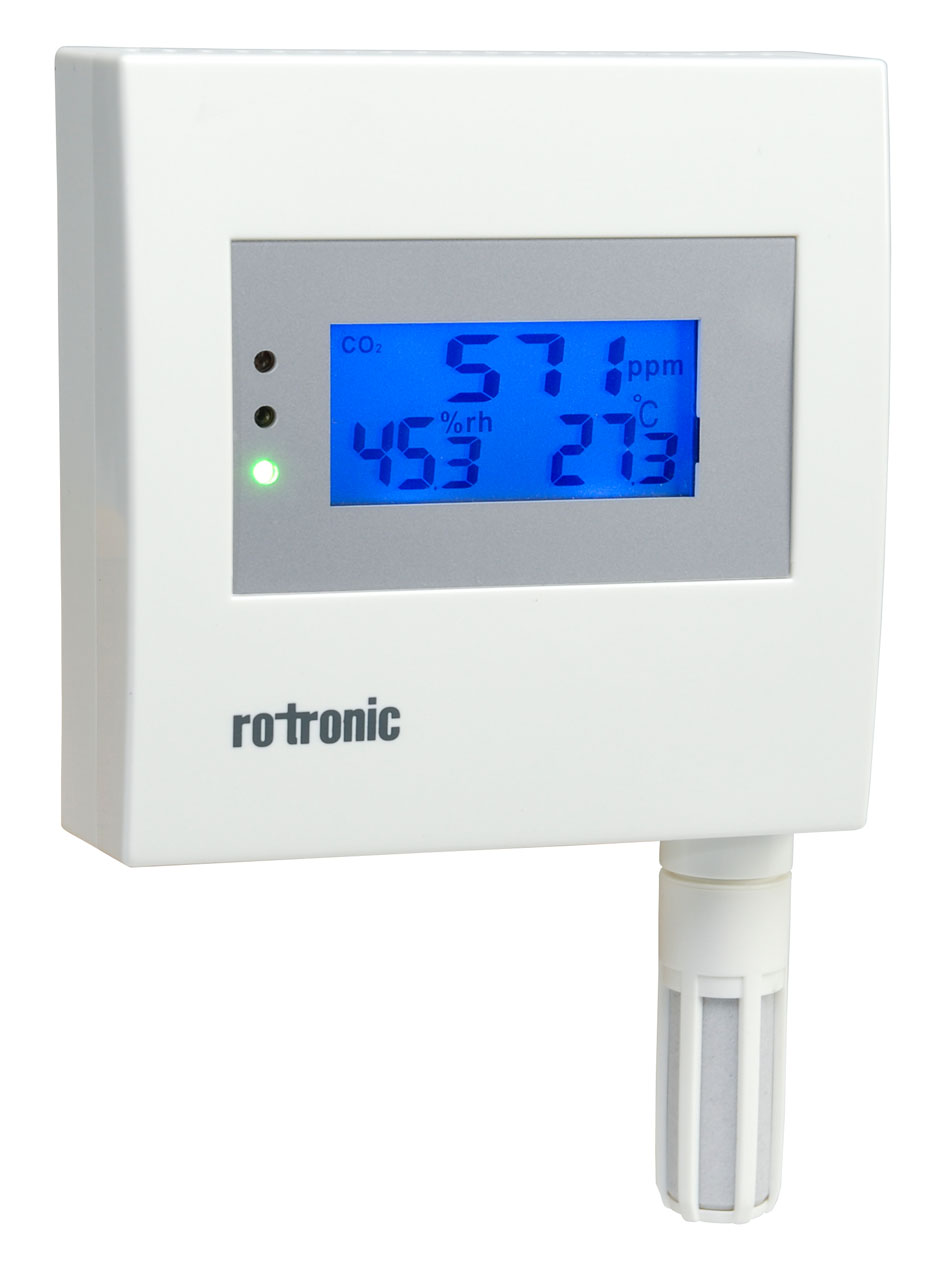

Economical Humidity, Temperature and CO2 Transmitter – CF1

Economical Humidity, Temperature and CO2 Transmitter – CF1

Call for price

Compact Economical Humidity, Temperature and CO2 Transmitter

The CF1 series is a reasonably-priced CO2 measurement transducers with integrated humidity and temperature measurement. The transducer can be adjusted and calibrated for the  humidity and CO2 ranges. Altering the scaling is a easy, with the Rotronic SW21/HW4 software. This unit is exceptional value for money with a stable  Hygromer® IN1 humidity sensor. Its elegant design fits in perfectly in offices, living-rooms, public buildings, etc.

CO2 Transmitter Features
  • Outputs for CO2, relative humidity, and temperature
  • Adjustable at 35 %RH or 80 %RH
  • Humidity sensor Hygromer® IN-1
  • Scalable analogue voltage or current outputs
  • Single-relay output
  • Three programmable LEDs
  • Compact size
  • Compatible with HW4 software

Description

PARAMETERS Humidity / temperature & CO2
RANGE OF APPLICATION Electronics: 0 .. 50 °C Measuring range probe dependent 0 .. 100 %RH, non-condensing
ACCURACY AT 23 ±5 °C <3 % RH (10..90 %RH) / ± 0.3, ± 1 K type S with display
0 .. 2000 ppm: ± 40 ppm ± 3 % of measured value
0 .. 5000 ppm: ± 10 % of measured value
MEASUREMENT PRINCIPLE Infrared (NDIR)
MEASUREMENT RANGES 0..2000 ppm or 0..5000 ppm
ADJUSTMENT POINTS 400 ppm and 35, 80 %RH
PRESSURE DEPENDENCY +1.6 % reading per kPa
POWER SUPPLY / POWER CONSUMPTION 12..28 VAC / 15..40 VDC
max. 86.5 mA
LONG-TERM STABILITY < 1.5 %RH per year
HUMIDITY SENSOR ROTRONIC HYGROMER® IN-1
STANDARD TEMPERATURE SCALE 0…50 °C or 0…100 °F
TEMPERATURE SENSOR Thermistor
RESPONSE TIME RH: 30s (63 % of a rise 35 .. 80 %RH) without filter / T: 4 s / CO2: <3 min diffusion time
ANALOG OUTPUTS 3 analog outputs (1 for each parameter) The mA and V output is not exchangeable. It is always fixed as mA or V. CF132 is the current output, CF135 is the voltage output
ANALOG OUTPUT SIGNAL (STANDARD) 4 .. 20 mA / 0..1 V / 10 V exchangeable via SW21/HW4 software
ENCLOSURE MATERIAL ABS
IP PROTECTION RATING Type S/R: IP30 Type D: IP65, without probe
LOAD PER ANALOG OUTPUT V signal: ≥1kΩ / V; mA signal: ≤500 Ω
RELAY Exchangeable via software for each parameter
max. switching voltage: 30 VDC / 125 VAC
max. switching load: 1A at 30 VDC / 0.5A at 125 VAC
min. switching load: 0.01 mA at 10 mV DC
ROHS CONFORMITY Yes
CE / EMC CONFORM 2014/30/EU / EN61000-6-1 / EN61000-6-2 / EN61000-6-3 / EN61000-6-4

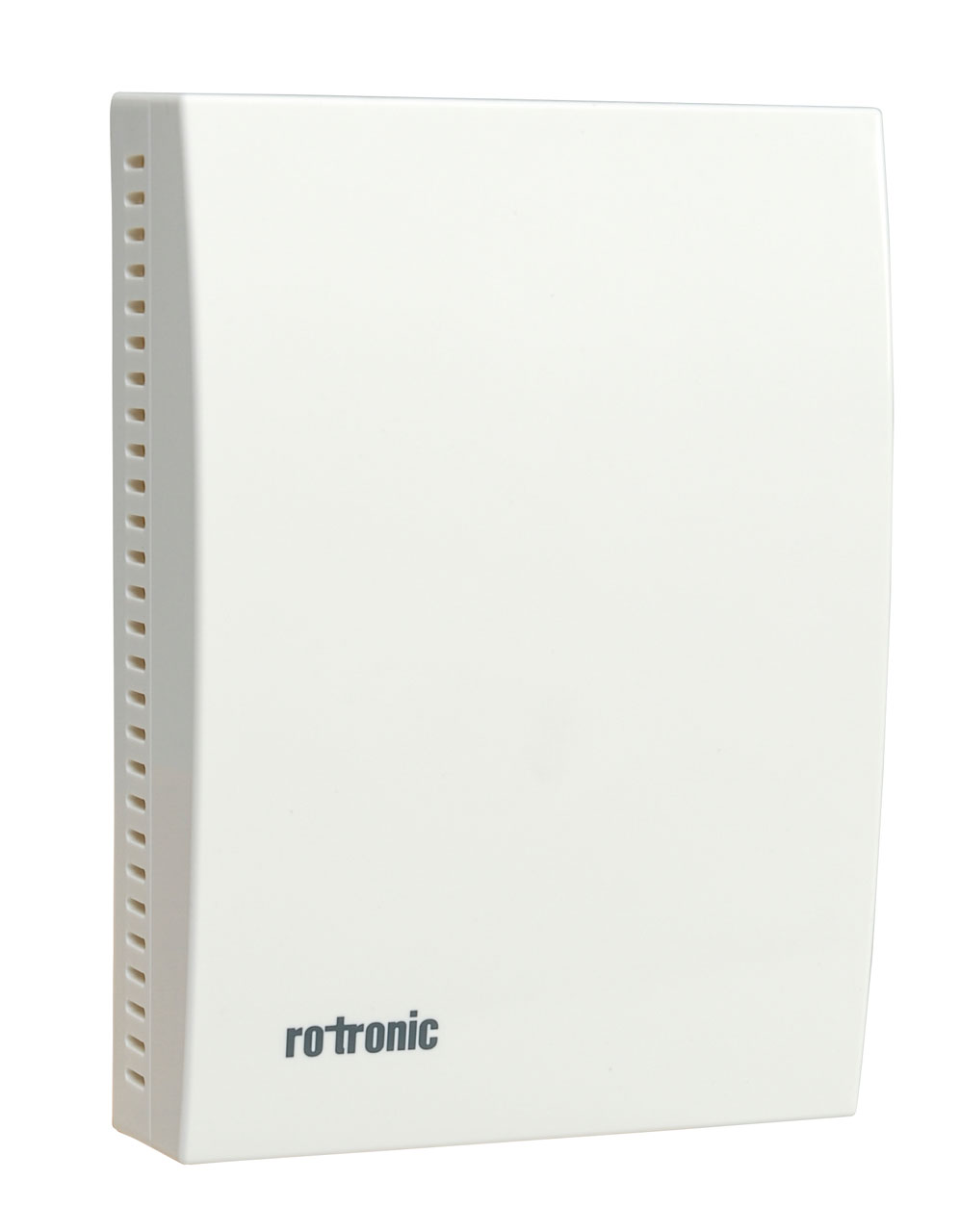

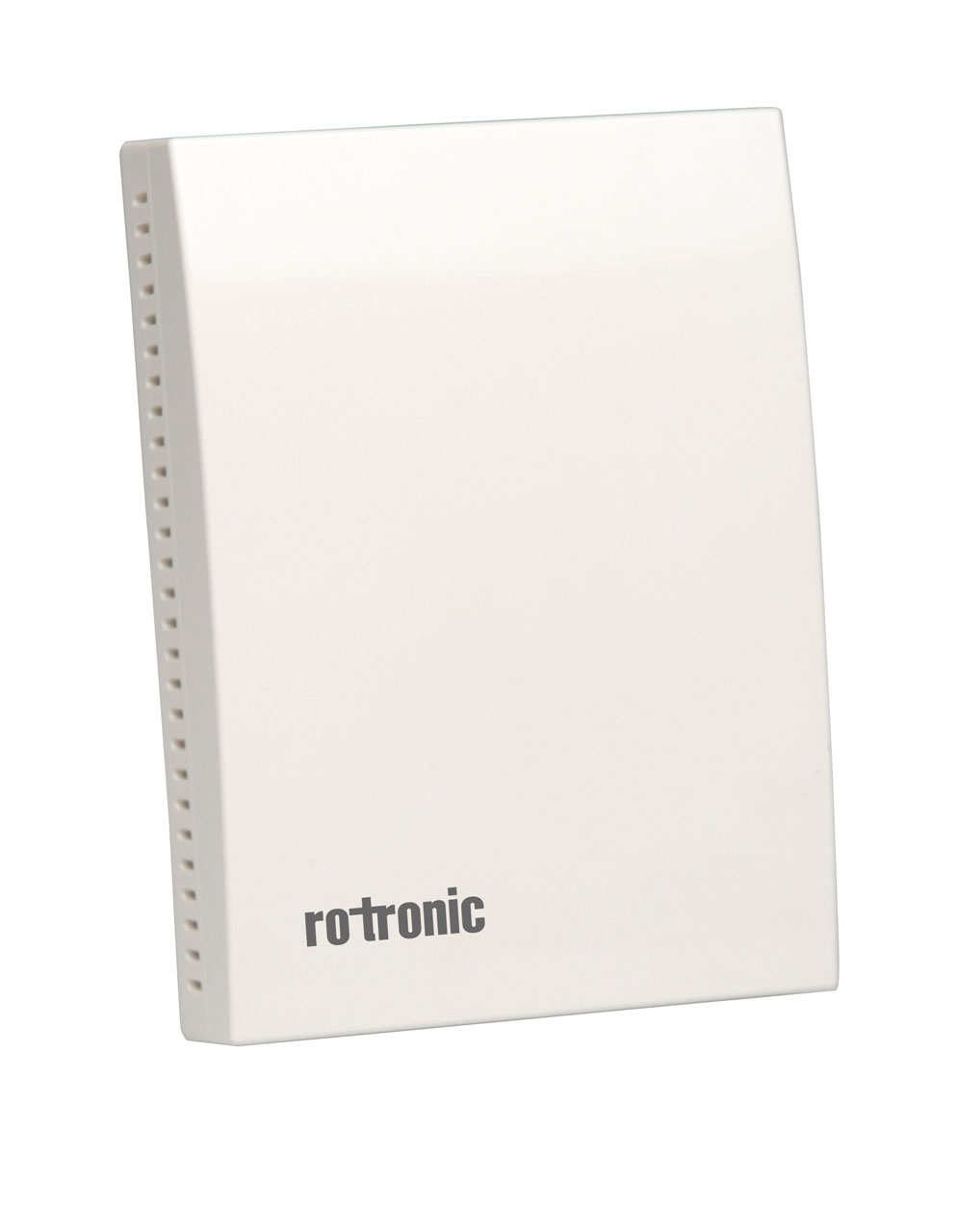

DIMENSIONS Type R: 131 x 86 x32 (H,W,D) mm
Type S: 120 x 86 x 32 (H,W,D) mm
WEIGHT Type R: approx.115 g / Type S: approx.135 g

Brand

Rotronic

Rotronic Logo

Additional information

Operating Humidity Max:

Operating Humidity Min:

Operating Temperature Max:

Operating Temperature Min:

Relative Humidity Range Max:

Relative Humidity Range Min:

CO2 Range Max:

CO2 Range Min:

Temperature Range Max:

Temperature Range Min:

Options

4..20mA, Space Mount with Display, 4..20mA, Space Mount no Display, 0-10V, Space Mount with Display, 0-10V, Space Mount no Display, 4..20mA, Room Mount with Display, 4..20mA, Room Mount no Display, 0-10V, Room Mount with Display, 0-10V, Room Mount no Display
