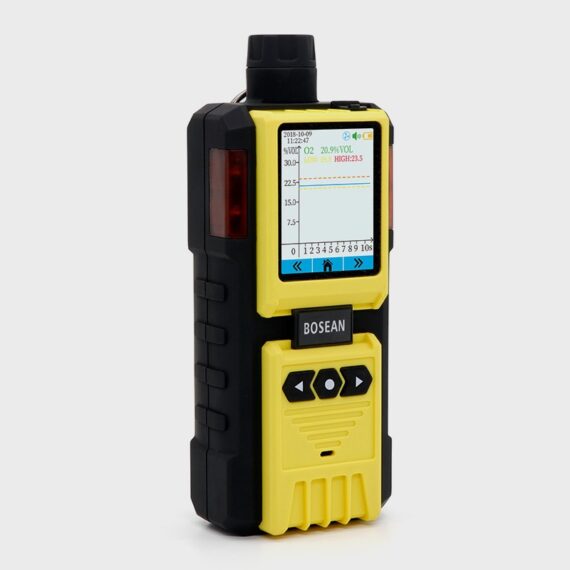

5 in 1 Multi Gas Detector – Overview

This compact gas detector measures 5 gases in 1. It is easy to use and intuitive. Various combinations are available. It uses the gas pump sampling method. It is durable, waterproof, dustproof and explosion-proof.

5 in 1 Multi Gas Detector  – Features

  • CO, O2, H2, H2S, CH4, C2H4O, EX, HC, C2H6O, NH3, CL2, O3, SO2, PH3, CO2, NO, NO2, HCN, HCL, HF, C7H8/C8H10
  • Gas pump sampling method
  • High sensitivity and repeatability
  • 32-bit built-in MCU
  • High reliability
  • Intuitive
  • Easy operation
  • CSTN color LCD
  • Compact design, easy carrying
  • Durable: water-proof, dust-proof and explosion-proof
  • 1200pcs data records, compatible with computer via software
  • Gas curve display
Category: Tag:
Bosean

Description

5 in 1 Multi Gas Detector | K-600

Gas sampling method
Gas pump sampling
Accuracy ≦±5% F.S.
Response Time ≦30s
Indication
LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage, pump working state.
Working environment
-20℃～50℃, ＜95%RH (no dew)
Power Source
DC3.7V Li-on battery, 3200mAh
Charging time 6h~8h
Working time
≧8h continuously (without alarming)
Gas Sensor Life 2 years
Explosion-proof grade
Ex ib llC T4 Gb
Protection Grade IP65
Weight
Appr. 400g (with battery)
Dimensions
130mm×67mm×30mm(L × W × H)
Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm

Note: Not all gases and ranges are listed

5 in 1 Multi Gas Detector | K-600

Additional information

Options:

CO 0-1000 ppm, Ex 0-100%, H2S 0-100, PPM O2 0-30%, 0.01%VOL,, NH3 10ppm, H2 1%vol, Ex 0-100%, H2S 0-100 PPM, O2 0-30%, 0.01%VOL, NH3 100%lel, H2 4%vol, Ex 0-100%, H2S 0-100 PPM, O2 0-30%, 0.01%VOL, N2: 70%-100%vol, CO2: 5%vol, O2: 30%vol", 0.01%VOL, CO2 0-20%, Ex 0-100%, H2S 0-100 PPM, O2 0-30%, 0.01%VOL
