Electrical Test & Measurement

1
Industrial Multimeter With Bluetooth | CMM30
R3,836.00 ex vat

Industrial Multimeter CMM30 - Overview

The Industrial Multimeter with Bluetooth CMM-30 model is a device from a new generation of industrial multimeters that combines versatility, modernity, and extraordinary durability. The instrument comes with 11 basic measurement functions together with additional functions to provide a wide range of applications. The smartphone app enables remote reading and saving of measurements, even from places with difficult access thanks to wireless communication. The backlight of the device automatically adjusts the brightness level of the screen and the control panel to the prevailing conditions, while the built-in flashlight allows working in the dark. The innovative design combines drop protection, IP67 casing, and ease of use, even with dielectric gloves. This device is created for electricians who value quality and innovation.

Industrial Multimeter CMM30 - Features
- 11 measurement functions
- AC/DC voltage measurement
- AC/DC measurement
- Resistance measurement
- Capacity measurement
- Temperature measurement
- Duty Cycle measurement
- Frequency measurement
- Manual and Automatic range selection
- Simultaneously display the sum of DC and AC components
- HOLD function to capture stable readings of noisy signals
- Recording maximum/minimum/average values
- Relative measurements
- Display the peak value of the measured signal
- True RMS for AC voltage and current
- Built-in Bluetooth for wireless communication
- Beeper for circuit continuity
- Built-in flashlight
- Automatic backlight
- Robust housing with IP67 protection
- Rotary switch designed for easy handling
- Increased drop protection
- Auto-OFF function
- 6000 counts display
- An optional strap with a hook
Datasheet

Add to basket
3
15kV Insulation Resistance Meter | MIC15k1
R128,722.00 ex vat

15kV Insulation Resistance Meter - Overview

The MIC-15k1 meter is designed to measure the insulation resistance of power objects up to 15kV, i.e. single and multicore cables, transformers, motors and generators, capacitors, switches, and other devices installed in power stations. It is especially recommended for measurements in areas with very high electromagnetic disturbances, e.g. electrical substations with 1200 kV AC and 500 kV DC. Thanks to the 15 kV measuring voltage (in accordance with ANSI / NETA ATS-2009 TABLES 100.1) the meter can be used for measuring objects with a nominal voltage above 34.5 kV.

15kV Insulation Resistance Meter - Features
- Diagnostics of insulation systems based on standard measurements of IR, DAR, PI, SV, RT, and DD, widened with the partial discharge (PD) indicator for each of these measurements
- Testing the electrical durability of tested object - breakdown voltage indication
- High resistance to electromagnetic interferences - uninterrupted work in power stations & close to high voltage transmission lines up to 1200 kV AC & 500 kV DC
- Smooth voltage rise in time function (RT - Ramp Test) - state the partial discharges in the facility and carry out a partial location of their occurrence
- Efficient converter with a power of ~150 W enables insulation burnout, allowing for pinpointing the location of cables and wires short circuit using one of the following:
  - visual method (if power cables are visible along the entire length)
  - reflectometric methods, seismic-acoustic waves detector, or with A-frame to indicate the direction of the fault (the conductor must be buried in the ground with earth direct contact)
- Compatible with external software
Add to basket
3
Modern Digital Multimeter with Flashlight, Bluetooth and IP65 Rated | CMM-11
R2,219.00 ex vat

Modern Digital Multimeter - Overview

This Digital multimeter is the perfect solution for every electrician, fitter, installer and maintenance crew. The CMM-11 multimeter is designed for quick diagnostics of devices and electric circuits. Thanks to an ergonomic design and pocket size, CMM-11 will find a place in every tool bag and will not take much space. It has all the basic measuring functions you would come to expect of a modern-age digital multimeter. Due to the rubberised housing, it will resist falls up to 2,5 meters from mechanical damage.

Modern Digital Multimeter - Features
- manual and automatic range selection
- Cat III 600V Rated
- built-in flashlight
- HOLD function for holding measured values
- MAX/MIN function for displaying extreme values
- compact housing
- increased resistance to falls
- beeper for sound signal circuit continuity
- auto-OFF function
- display 3¾ digit (count max 4000)
Add to basket
Portable Appliance Tester | PAT-10
R23,842.00 ex vat

Portable Appliance Tester - Overview

The innovative small dimensions make this PAT tester truly portable. With its advanced measuring systems it will allow you to carry out fully automated measurements for electrical equipment. Options can be freely configured to suit the user's needs. Alternatively, switch it to manual mode to perform individual tests. All meters in this (PAT) range allows you to make basic measurements without external power in emergency situations as one can easily run a simplified set of test in battery mode.
The small size, weight, and specially designed carrying case of the meter and accessories provide comfort and high mobility. Wireless communication to the printer is hassle-free without unnecessary cables. Storage and integration of the results in PC software further extend the functionality of the instrument.

View a simulation here: https://www.sonel.pl/simulators/pat-10/

Portable Appliance Tester - Features

Wifi Enabled

Works with a portable printer

LED test results indication

Quick access to the measurement procedures

Measurement of insulation resistance

PRCD trip time testing

Measurement of equivalent, touch and differential leakage current

IEC lead test

Measurement of mains voltage

Measurement of protective conductor resistance with the currents: 200 mA, 10 A

Automatic range selection

Compact design, ergonomic soft case

Works with the program Sonel Reader and Sonel PAT (option)

[embed]https://youtu.be/Nq6Tr9HG6Kc[/embed]

[embed]https://youtu.be/GxtfTssNo8o[/embed]

[embed]https://youtu.be/aP1IYwetw4c?list=PLICwL6VglKz0euP0AL5y7aEDgVFxkZ183[/embed]

[embed]https://youtu.be/26qo36ZVBKs?list=PLICwL6VglKz0euP0AL5y7aEDgVFxkZ183[/embed]

https://youtu.be/826nqwf-I5U?list=PLICwL6VglKz0euP0AL5y7aEDgVFxkZ183
Add to basket
Split Core Current Clamp | C-PV
R2,676.00 ex vat
Split Core Current Clamp - Overview

Split-Core current clamps are used for measuring alternating and direct currents. All models are terminated with a 5-pin connector. There are two measuring ranges: 40 A and 400 A. The diameter of the enclosed conductor is a maximum of 30 mm.

Split Core Current Clamp - Features

Add to basket
Three-Phase Network Analyser Kit | UPM309RGW
Price range: R14,544.00 through R22,880.00 ex vat
Three-Phase Network Analyser Kit - Overview

This kit is used for the measurement and recording of the electrical parameters. It is suitable for consumption analysis and control and has an excellent quality/price ratio. The UPM309 power meter is the ideal instrument for establishing the measurement points on the plant and can be managed remotely. Data generated creates consumption profiles, recorded values trends, alarms and events reports, costs calculation as well as critical values identification. The Kit consists of a network analyser and 3 Rogowski coils. The use of Rogowski coils for current measurement allows quick installation on existing plants. The instrument can also be fit for the current consumption without replacing the transducer.

Three-Phase Network Analyser Kit - Features
- DIN 96x96 ultra-compact version, only 39 mm depth
- Fully bi-directional four-quadrant measurements
- Main electrical parameters measured and displayed
- 4 available KITs: 30, 45, 70, 90 cm coil length
- 3 selectable current scales
- Possibility to connect by PT
- Up to 8 MB for data recording
- Can record all energy counters
- Up to 24 parameters selectable
- MODBUS RTU communication by RS485 port / MODBUS TCP communication by Ethernet port
- Can manage the instrument in remote mode with WintoolNET software or by Web interface
- 2 digital outputs, 1 digital input
- Accuracy class 0.5 according to IEC/EN 61557-12 for active power/energy
Select options
AC Current Digital Clamp Meter | CMP-402
R2,031.00 ex vat
AC Current Digital Clamp Meter - Overview

The versatile CMP-402 measures AC current, AC and DC voltage and more. In addition to the basic measurements, the instrument has special functions, including inrush current (INRUSH), max/min peak values (Peak MAX/Peak MIN), and relative value (REL). The meter provides precise measurements downstream of frequency converters thanks to the VFD function. Working in dark, hard-to-reach places is not a problem due to the built-in flashlight and innovative shape. The clamp edging is equipped with a contactless voltage indicator sensor. This compact instrument is suitable for working in the toughest conditions. The rubber housing protects the device against accidental damage.

AC Current Digital Clamp Meter - Features
- Counting: 4.000 digits
- HOLD
- Automatic range selection
- Current and voltage measurements downstream inverter, frequency converter / VFD system
- Inrush current
- Non-contact voltage detector
- Peak MIN / Peak MAX
- Relative measurement REL
- TRMS measurement
- Auto-off
- Empty battery indication
- Integrated flashlight
- Beeper
- Display:
  - Type: segment-based LCD, 4 digits
  - Display backlight: manual
https://www.youtube.com/watch?v=rEY7S0k2214

Add to basket
Digital AC/DC Clamp Meter | CMP-403
R3,046.00 ex vat
Digital Clamp Meter - Overview

The CMP-403 measures AC & DC current, AC & DC voltage and more. The meter provides precise measurements downstream of frequency converters thanks to the VFD function and is versatile due to its many measurement options. In addition to the basic measurements, the instrument has special functions which include inrush current (INRUSH), max/min peak values (Peak MAX/Peak MIN), and relative value (REL). The built-in flashlight eliminates the problem of darkness in the workplace. The innovative shape means easier access in hard-to-reach and tight places. The clamp edging is equipped with a contactless voltage indicator sensor. This compact instrument is suitable for working in the toughest conditions. The rubber housing protects the device against accidental damage.

Digital Clamp Meter - Features
- Counting: 4.000 digits
- HOLD
- Automatic range selection
- Current and voltage measurements downstream inverter, frequency converter or in VFD system
- Inrush current
- Non-contact voltage detector
- Peak MIN / Peak MAX
- Relative measurement REL
- TRMS measurement
- Auto-off
- Empty battery indication
- Integrated flashlight
- Beeper
- Display:
  - Type: segment-based LCD, 4 digits
  - Display backlight: manual
Add to basket

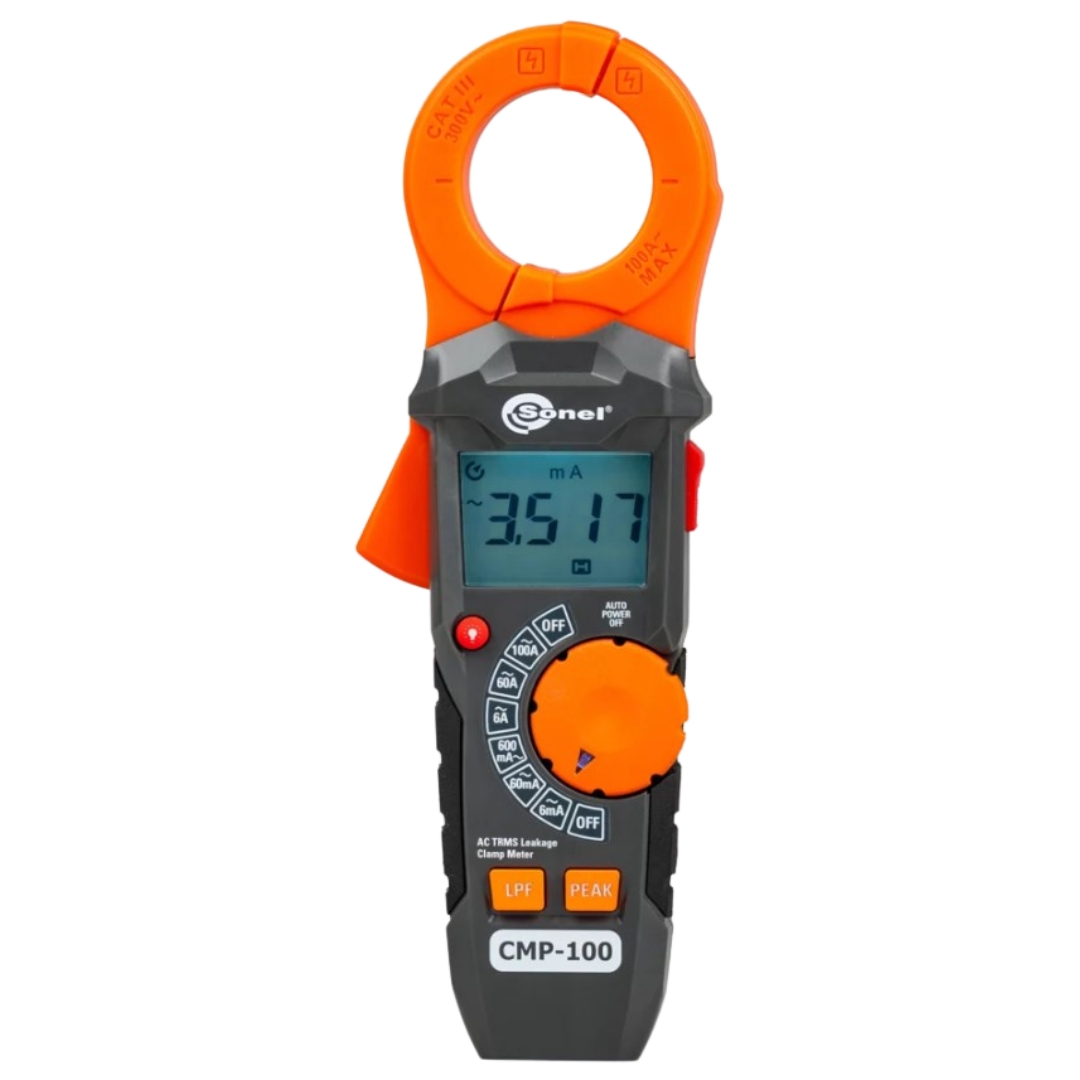

Leakage current digital clamp meter | CMP-100
R6,619.00 ex vat
Leakage current digital clamp meter - Overview

The CMP-100 measures very low currents. Advantages include measurement resolution of 1 μA, very high sensitivity and accuracy. The low-pass filter minimises signals with frequencies above the cut-off frequency, reducing their impact on the measurement result. The built-in flashlight enables work in dark places. The compact shape means easier use in hard-to-reach and tight spots. It was designed for use in the toughest conditions and the rubber housing protects the device against accidental damage.

Leakage current digital clamp meter - Features
Modern clamp

Visibility in any conditions

Low-pass filter

Robust design

Measurement of very low currents
https://www.youtube.com/watch?v=EnZyIFaV4l4

Add to basket
Mounted Power Quality Analyser | PQM-750
Price range: R114,207.00 through R128,459.00 ex vat
Mounted Power Quality Analyser - Overview

The Mounted Power Quality Analyser is a stationary meter. It is designed to be mounted on a DIN rail and can be mounted on a wall in a cabinet. It has a modular design that allows the expansion of the meter. It measures and records power supply parameters for compliance with standards and applicable laws. It can verify the preset terms of a power sale or purchase contract. It is manufactured in class A. The instrument allows measurements in 50 Hz, 60 Hz and 400 Hz networks.

Mounted Power Quality Analyser - Features
- Full class A according to IEC 61000-4-30
- 5 Voltage input terminals: L1, L2, L3, N, E
- 5 current transformers: L1, L2, L3, N, E currents
- Operation in 50 Hz, 60 Hz networks, 400 Hz networks coming soon
- Recording of voltage and current events along with waveforms
- Measurement of more than 4,000 parameters
- 24-bit analogue-to-digital converter
- Basic sampling rate of 80 kHz
- Conducted emissions monitoring in the 2…150 kHz band
- Two LAN ports, option of powering PoE (Power over Ethernet)
- Power supply 85…264 V AC (120…300 V DC),
- Built-in rechargeable battery
- 8 GB memory (microSD card)
- USB port for meter updates and data exchange
- Two binary inputs, two relay outputs, two RS-485 ports
- Relay output to monitoring analyser operation (Watchdog)
- 1-wire input for external temperature sensors
- 2.4” touch screen
- DIN rail or wall mounting
- Expansion bus allowing connection of various external modules (e.g. GPS, LTE)
- Built-in web server for programming, reading data, viewing events with oscillogram/RMS display
- Time synchronization with reference via NTP servers, IRIG-B (via built-in RS-485)
- Optional GPS module
- Measurement category CAT III 600 V (IV 300 V) for voltage inputs
- Measurement category CAT III 300 V for current inputs
- Possibility of sealing current and voltage inputs
Select options
Battery Tester | BT-120
R87,432.00 ex vat
Battery Tester - Overview

The BT-120 tester allows you to accurately test a wide range of battery parameters to ensure optimal battery performance. Designed for both professionals and home users. This reliable tool provides accurate measurements and precise information about the condition of the battery. Benefits include monitoring the performance of batteries to avoid unpleasant surprises, making informed decisions about the continued use of batteries or their replacement, ensuring reliable power supply in a wide range of applications and identifying potential problems by measuring the ripple voltage. The tester can accurately measure AC and DC current up to 400 A. This is crucial to assess the battery's ability to deliver power and identify any problems with current flow. It also allows you to measure both AC and DC voltage, up to 500 volts. This is important for monitoring voltage stability and matching battery voltage to the requirements of powered devices. The tester allows you to measure the internal impedance, which assesses the condition of the battery and assists in making informed decisions about its further use. It can also measure the ripple voltage down to 5 V to identify potential problems, such as cell damage or improper charging. This is crucial to maintaining battery performance. Suitable for use in the automotive, electrical, renewable energy and telecommunications industries.

Battery Tester - Features
- Industry versatility
- Ripple voltage measurement
- Internal impedance measurement
- AC/DC voltage measurements
- AC/DC current measurements
Add to basket
Portable Appliance Welding Machine Tester | PAT-96
R69,193.00 ex vat
Portable Appliance Welding Machine Tester - Overview

The PAT-96 is perfect for control measurements of welding machines and other electrical devices. It measures parameters impacting the safe use of the equipment such as resistance of protective conductors, insulation resistance, continuity of connections, leakage currents, power, RCD and PRCD. It tests welding equipment according to the EN 60974-4 standard. It also checks the rated voltage of welding equipment in no-load condition, the welding circuit leakage current and the primary leakage current. It is ideal for those areas where safety is of particular importance. Suitable wherever welders, power tools, three-phase appliances or domestic appliances need to be inspected.

Portable Appliance Welding Machine Tester - Features
- Power supply 195...265 V
- Measurement of devices with 110 V and 230 V 50/60 Hz power supply
- Measurement of welding equipment parameters:
  - rated voltage of welding devices in no-load condition
  - welding circuit leakage current
  - primary leakage current
  - protective conductor resistance measurement
  - measurement of insulation resistance in three points
  - measurement of substitute, differential and touch leakage current
  - functional test
  - test of RCD and PRCD switches
- Intuitive user interface.
- Cooperation with a label printer and QR code scanner.
Add to basket
Cable and Underground Infrastructure Locator | LKZ-2500
Price range: R32,002.00 through R62,613.00 ex vat
Cable and Underground Infrastructure Locator - Overview

Locating, identifying and tracking the route of objects buried in the ground becomes child's play. The set consists of an LKN transmitter, a LKD detector, a tablet and a long handle. It can trace power cords and cables, control cables, telecommunications cables, underground elements of lightning protection systems, cathodic protection systems, water and sewage systems, fuel transmission systems (pipelines, gas pipelines), heating systems and pre-insulated pipes. This invaluable tool is suitable for various industries, including energy, installation, construction, railway, telecommunications, water and sanitary, heating, geodetic and many others. The transmitter injects a locating signal into an underground object and the detector traces this signal along the object. The positioning information is displayed on the Sonel LKZ Mobile app which is connected to the detector. Determining the object’s route is possible through observation of the compass readings and the level of the detected signal.

The system is capable of operating in passive mode (without the use of the LKN-2500 transmitter) and active mode (with the use of the LKN-2500 transmitter). The active mode can introduce the signal in three different methods:
- galvanic – injects tracing signal into the object directly, through crocodile clips and test leads,
- clamp – injects tracing signal into the object through an inductive clamp,
- inductive – injects tracing signal into the object inductively, using the instrument’s internal antenna.
Cable and Underground Infrastructure Locator - Features
- Locating, identifying & tracking of objects buried in ground
- Live positioning preview
- Measuring the distance to a specific waypoint
- Export of routes to other mobile devices
- Reading routes from the mobile device’s memory
- Preview of all recorded parameters
- Merging routes
- Adding notes to routes and measurement points
- Detector
  - Active mode

    work with LKN-2500 transmitter at frequencies of 8 kHz, 32 kHz (Signal mode)
  - Passive mode – work at the frequencies of:

    50 Hz, 60 Hz (Power mode)

    2...65 kHz (Radio mode)
- Transmitter
  - Operation in direct galvanic or inductive connection mode – internal transmitting antenna
  - Compatible with transmitting clamps
  - Rugged housing
https://www.youtube.com/watch?v=PdxFtcw4-QA

Select options
Insulation Resistance Meter | MIC-2511
Price range: R25,272.00 through R52,647.00 ex vat
Insulation Resistance Meter - Overview

Measure insulation resistance up to 2 TΩ. The MIC-2511 may be used to measure the insulation resistance using test voltage up to 2500 V. This surprising tool includes numerous functions. Its parameters, robust casing (IP65 protection level), low battery power consumption, and the ability to recharge during measurements make it a reliable tool that can be used in many areas. The device has built-in help screens with measurement diagrams so you can easily and quickly check and make sure how to connect to a given system depending on the type of measurement performed. It is ideal for checking industrial installations and catenary networks and is also successfully used in residential buildings. It also enables the testing of surge protection devices (SPD). The advantages of this meter are especially appreciated by electricians working in maintenance, testing motors, cables and street lighting. It is also useful for measurements during the construction and maintenance of photovoltaic installations. It is a reliable solution created for the needs of telecommunications network installers and heating network operators, facilitating the control of the alarm system of pre-insulated pipes. Also available as an EPA kit.

Insulation Resistance Meter - Features
Measurement voltage within the range of 10…2500 V: selected from 10 V, 25 V, 100 V, 250 V, 500 V, 1000 V, 2500 V, or 10…2500 V selected in steps of 10 V

Insulation resistance measurements with a voltage of 10 V of the supervisory loop of fire alarm systems

Charts plotted on display during measurements

Measurements in electrostatic protected areas (EPA)

Correction of insulation resistance result to reference temperature

Continuous reading of measured insulation resistance or leakage current

Automatic discharge of the measured object’s capacitance upon completion of insulation resistance measurement

Sound signaling of five-second time intervals, facilitating capture of time characteristics

Timing of measurement times T₁, T₂ and T₃ for measurement of one or two absorption coefficients (Ab1, Ab2 or DAR, PI) within the range of 1… 600 s

Automatic measurement of all resistance combinations of 3-, 4- and 5-core cords and power cords using the optional AutoISO-2511 adapter

Reading of actual measurement voltage during measurement

Measurement current <2 mA

Protection against measurement of live objects

Two- or three-lead method of insulation resistance measurement
Additional features
Measurement of leakage current during measurement of R_ISO

Capacitance measurement during measurement of R_ISO

Low-voltage measurement of circuit continuity and resistance

Temperature measurement (with the use of the optional ST-1 temperature probe)

Measurement of direct and alternating voltages within the range of 0...1500 V

9999-entry memory, data transmission to PC via USB cable

Power supplied by rechargeable battery

Backlit keyboard

The instrument meets the requirements laid down by standard EN IEC 61557

https://www.youtube.com/watch?v=44SqibjYEl4
Select options
AC digital clamp meter with data logger | CMP-3kR
R3,272.00 ex vat
AC digital clamp meter with data logger - Overview

The handy digital AC clamps meter with a recorder is a professional tool for measuring AC current up to 3000 A. The CMP-3kR is equipped with flexible clamps with a diameter of 160 mm and a cable length of up to 170 cm. Operating the device is simple and safe. The user can maintain greater distance and control due to the Sonel Multimeter Mobile application - it provides communication with the meter via Bluetooth interface. The bracket on the back of the case allows the use of various types of hangers, including magnetic ones. This small, specialised instrument incorporates a built-in recorder with RTC that can record currents for 24 hours with a recording frequency of 1 second.

AC digital clamp meter with data logger - Features
- Attachable flexible clamp
- Enables AC current measurement up to 3000 A
- Designed for easy installation on power busbars up to 160 mm diameter
- Wireless communication via Bluetooth, or Sonel Multimeter Mobile application
- Robust design
- INRUSH feature helps testing for inrush current levels
- Integrated current logger with an RTC includes start date and time
- Record and store results and include descriptions or photos
Add to basket
